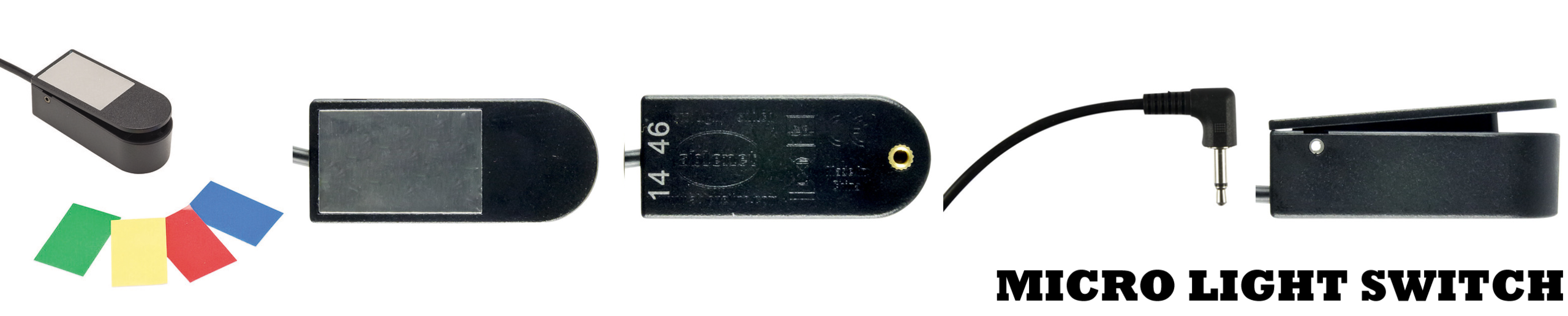

Micro Light Switch

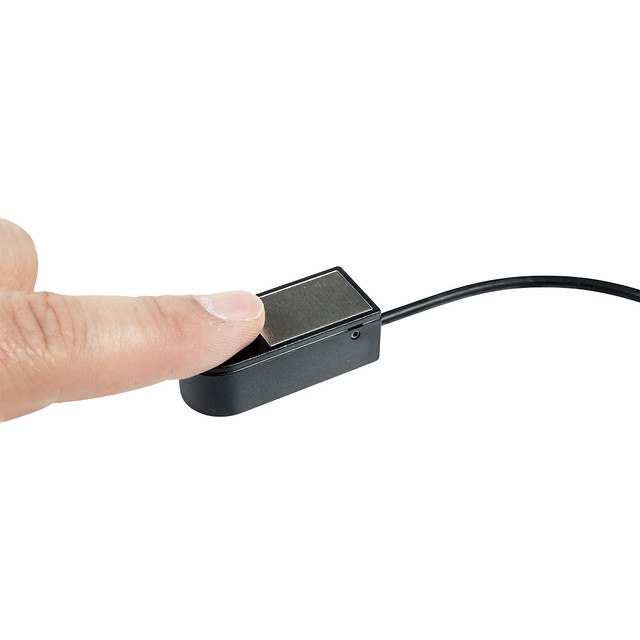

A wired, feather-light mechanical switch that is small and discrete requiring very light pressure to activate, providing auditory and tactile feedback. It is easily activated with the finger or chin and includes five colored stickers.

Specifications Video Brochures Description
  • Switch Type: Mechanical
  • Connection Type: Wired
  • Cord Length: 5 ft (152 cm)
  • Activation Type: Light Touch Pressure
  • Activation Surface: 1.7 x 0.5-in/ 4.5 x 1.3-cm
  • Activating Force: 0.4-oz/ 10-g
  • Travel Before Activation: 0.25-in/ 0.7-cm
  • Feedback: Auditory click, Tactile
  • Plug Size: 1/8-in/ 3.5-mm mono right angle
  • Mounting Plate: Micro Light Plate

The Micro Light switch provides both auditory and tactile feedback to the user. Micro light switch requires just 10-g of pressure to activate.  (For comparison purposes, the Jelly Bean switch requires 71-g of force while the Buddy Button requires 142-g of force). This light switch includes 4 stickers red, blue, yellow, green, to allow the user to use whatever high contrast color they desire. Threaded insert on the bottom also makes mounting easy with a standard 4-40 screw.
